You can quickly see the status of every node in Network Monitor’s different views without reading the details. These clear visual icons are used consistently throughout Network Monitor.

Icon Status Indication
Network Monitor - node status - up Node or interface is up
Network Monitor - node status - down Node or interface is down
Network Monitor - node status - warning Node is in a warning state (dropped packets or down interface)
Network Monitor - node status - critical Critical
Network Monitor - node status - shutdown Shutdown
Network Monitor - node status - unreachable Unreachable
Network Monitor - node status - unmanaged Node or interface is unmanaged

Hovering Over a Node for Quick Information

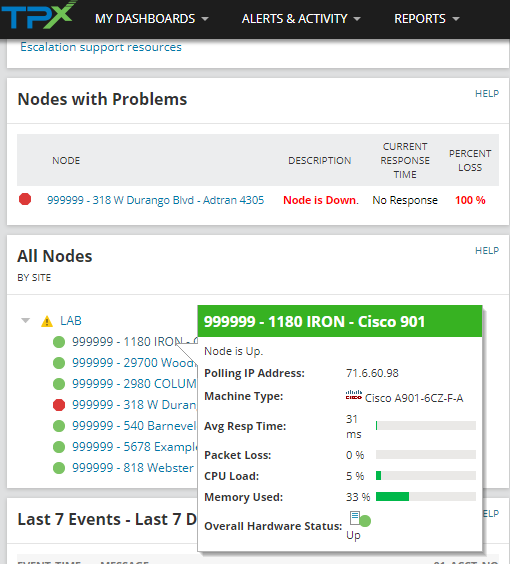

If you hover your pointer over a specific node or interface object anywhere in Network Monitor, you’ll call up a quick tool tip message that gives you highlights about top level status and node characteristics. Clicking on the node drills down to more detailed information, which will be described in specific sections of this Customer Guide.
